Vogels Projector Ceiling Mount - White
SKU: PPC1500W
Details
PPC 1500
Article number (SKU)
7015001
Colour
White
• Cables fully concealed
• Fine tuning during installation
• Fine tuning possible after installation
• Theft prevention

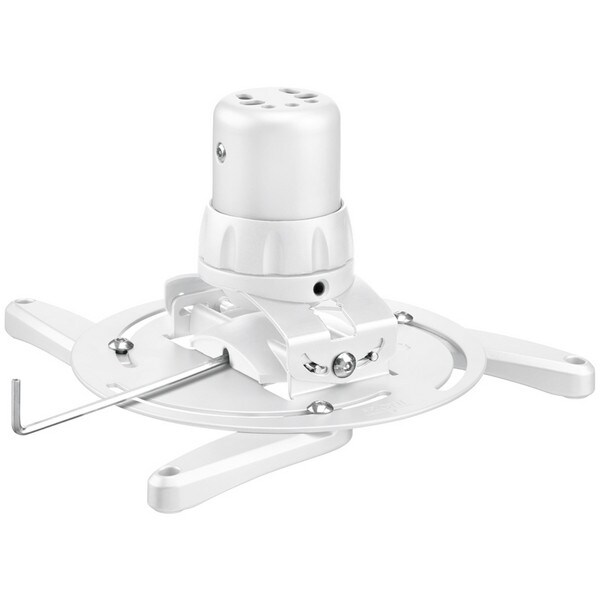

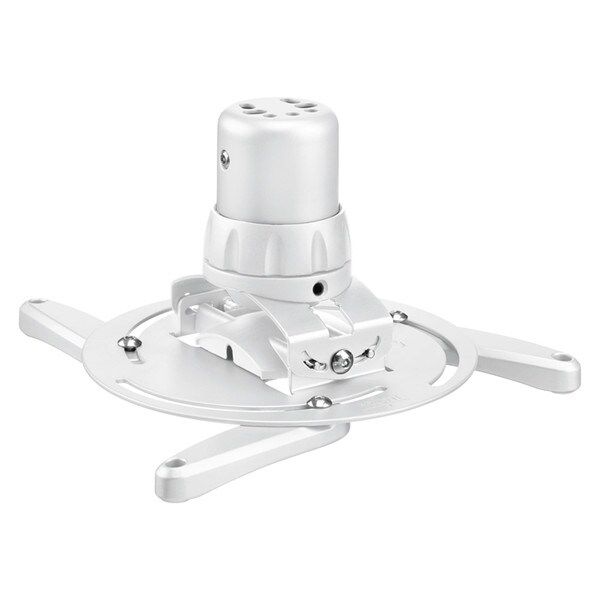

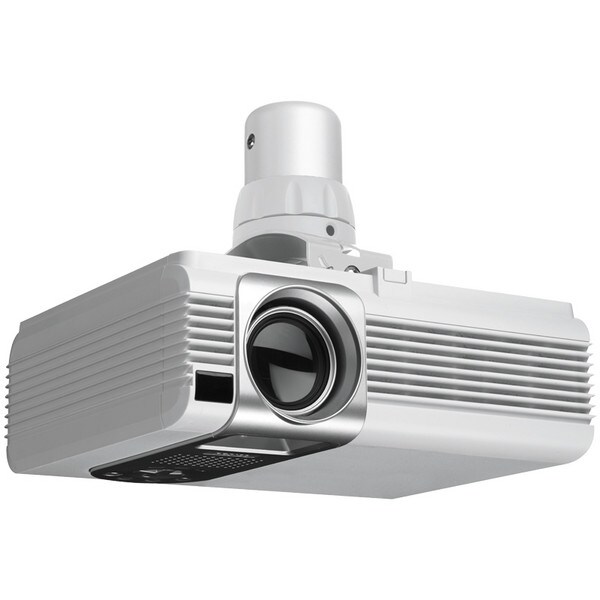

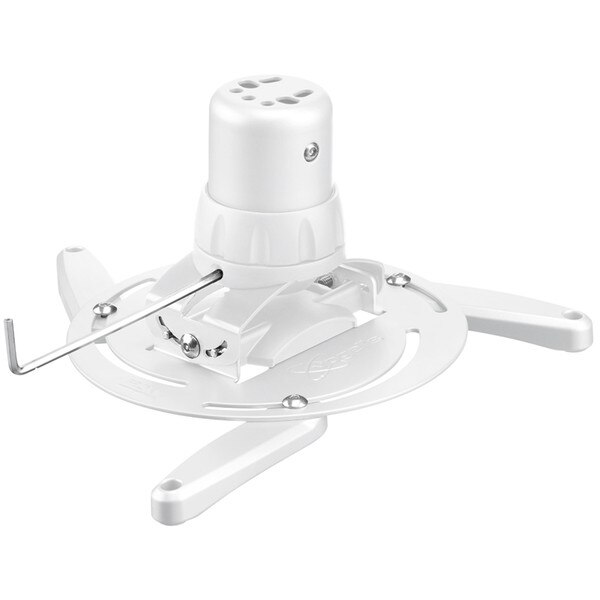

The PPC 1500 projector mount is specially designed for the new generation projectors up to 20 kg. position.

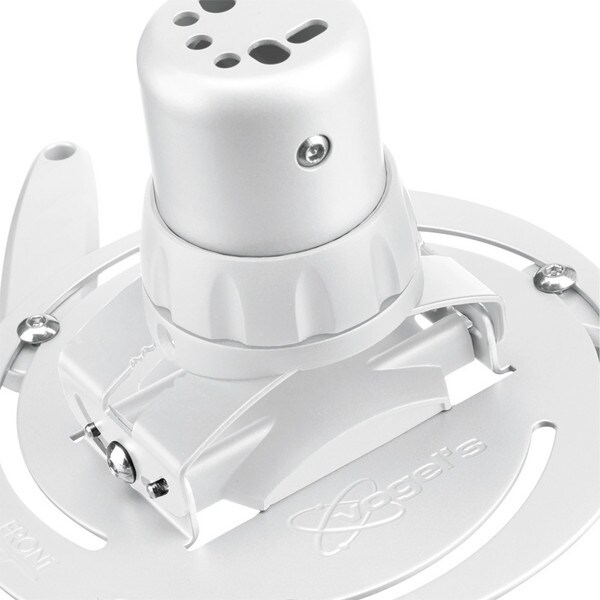

This projector interface is equipped with a unique fine tune adjustability for precise alignment with the projection surface. Once aligned, the projector stays in
The height adjustable projector ceiling mount kits can be used when the height of the ceiling is not known or when flexibility is wanted.
These mounts come in 3 lengths offering variable height adjustment from 400 to 1350 mm. The Cable Inlay System runs the full length of the pole and even allows for cable routing after installation. The offers sufficient space for all cables required and enables you to hide all the cables in a matter of seconds.
Specifications
| Specifications | |
|---|---|
| For PPC 1500 Projector ceiling mount white | |
| EAN single box | 8712285325144 |
| Series | General |
| Series | General |
| Product group | Projector ceiling mount |
| Guarantee | 5 years |
| Product group | Projector ceiling mount |
| Guarantee | 5 years |
| Colour | Silver |
| TÜV certified | Yes |
| Min. distance to ceiling (mm) | 124 |
| Max. distance to ceiling (mm) | 124 |
| Min. distance to ceiling (mm) | 124 |

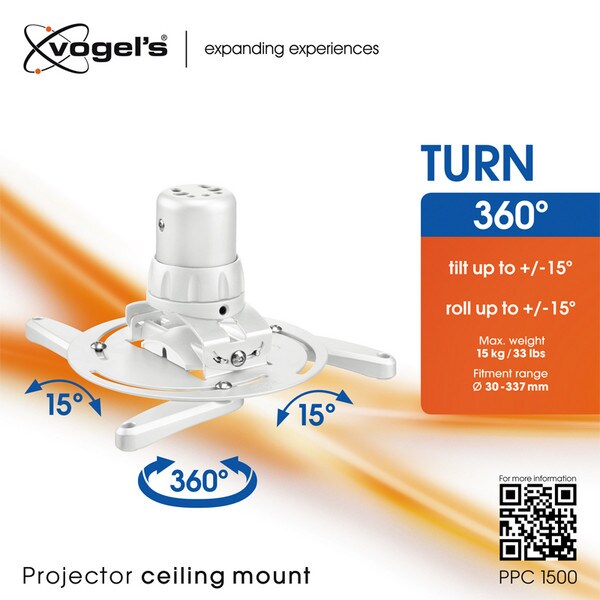

| Turn | Up to 360° |
| Max. distance to ceiling (mm) | 124 |
| Tilt | Tilt up to 15° |
| Turn | Up to 360° |
| Tilt | Tilt up to 15° |
| Roll | 15 |
| Roll | 15 |
| Max. weight load (kg) | 20 |
| Max. weight load (kg) | 20 |
| Fischer inside | Yes |
| Fischer inside | Yes |
| Max. projector weight (kg) | Up to 15 |
| Max. projector weight (kg) | Up to 15 |

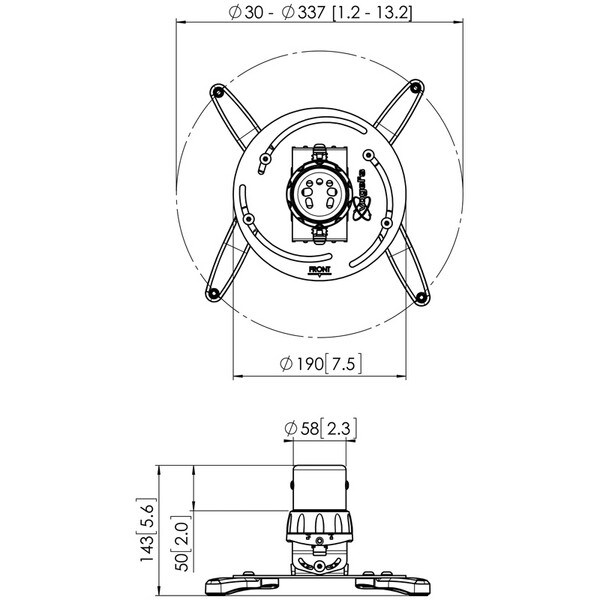

| Range (diameter) | 30 - 337 mm |
| Height range (mm) | 0 mm |
| Range (diameter) | 30 - 337 mm |
| Height range (mm) | 0 mm |
| Power Consumption | |
