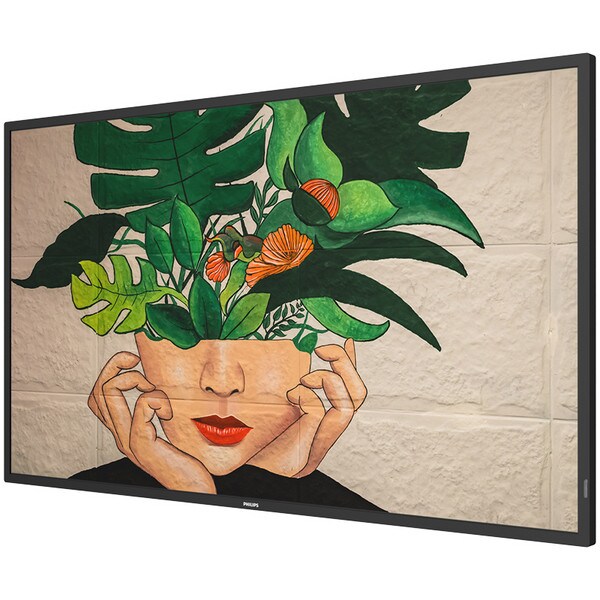

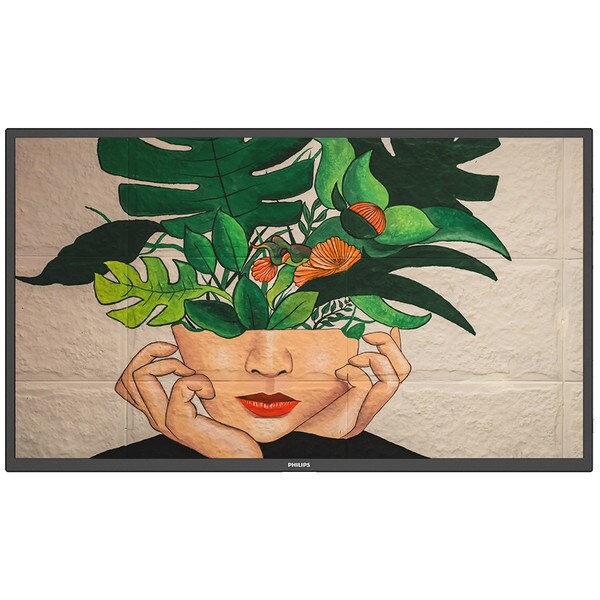

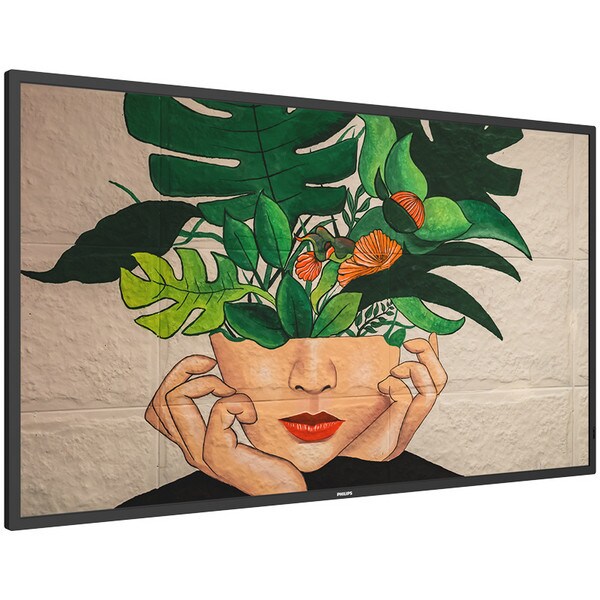

Philips 43" BDL4550D D-Line Signage Solutions Display

SKU: 43BDL4550D
$1,590.00
Location Availability
Auckland + 10

Details

Chasing innovation

Powered by Android

Amaze your guests with a smarter, faster, signage display. With integrated WiFi and designed for running Android apps, it's the next evolution in signage solutions

Innovative solutions for any signage application
• Save and play content with internal memory
• Integrated dual-band WiFi
• Android SoC processor. Native and web apps

Maximizing the impact of your message
• CMND: Take control of your displays
• Manage settings of multiple displays with CMND & Control
• Create and update content with CMND & Create
• Connect and control your content via the cloud

Care about you, your business and your audience
• Keep your content up and running with FailOver
• Ensure your content is running with automatic screenshots
• SmartPower for energy saving

Expand your viewing experience
• ADS wide-view panel display

Powered by Android 8

Control your display via an Internet connection. Android-powered Philips Professional Displays are optimized for native Android apps, and you can install web apps directly to the display too. A new Android 8 ensures the software is kept secure and remain to the latest specification for longer.

Internal Memory

Save and play content with internal memory. Upload your media into the display and playback content immediately. Working in conjunction with the internal browser, it also serves as a memory cache when streaming online content. If the network ever fails, the internal memory keeps content running by playing a cached version of the content, ensuring that your media stays up even if the network goes down.

Proof of Play

Content is king, and with the automatic screenshot feauture, you can make sure that your content is up and running at all times. Screenshots are taken throughout the day, which are then stored in the FTP server. From there, the screenshots can be viewed no matter when, or where you are.

FailOver

Keeping your content up and running is critical for demanding commercial applications. While it is unlikely you will face a content disaster, FailOver provides content protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and your ready for instant protection.

SmartPower

The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

CMND

A robust display management platform, CMND puts the power back into your hands. Update and manage content with CMND & Create or control your settings with CMND & Control. It's all possible with CMND.

CMND & Create

Design and create compelling content with CMND & Create, a powerful authoring tool. With a drag and drop interface, preloaded templates, and integrated widgets, you'll be able to amaze your customers with compelling content. Available in portrait and landscape mode.

CMND & Control

With CMND & Control, easily manage multiple displays in a central location. With real time display monitoring, setting and software updates from a remote location, and the ability to customize and configure multiple displays at once, such as video wall or menu board displays, controlling your suite of displays has never been easier.

ADS wide-view panel display

Be seen from any angle with ADS wide-view technology. Advanced Super Dimension Switch delivers faster on-display picture processing for smoother content transitions, remarkable image accuracy, and superior colour reproduction with 180 degree viewing.

SmartBrowser

Connect and control your content via the cloud with the integrated HTML5 browser. Using the Chromium based browser, design your content online and connect a single display, or your complete network. Show content in both landscape and portrait mode, with fullHD resolution. Simply connect the display to the internet using WiFi or with an RJ45 cable, and enjoy your own created playlists.

Specifications

Picture/Display
Picture/Display
Diagonal screen size42.5 inch / 108.0 cm
Diagonal screen size42.5 inch / 108.0 cm
Panel resolution3840 x 2160
Panel resolution3840 x 2160
Optimum resolution3840 x 2160 @ 60Hz
Optimum resolution3840 x 2160 @ 60Hz
Brightness500 cd/m²
Brightness500 cd/m²
Contrast ratio (typical)1200:01:00
Contrast ratio (typical)1200:1
Dynamic contrast ratio500,000:1
Dynamic contrast ratio500,000:1
Aspect ratio16:09
Aspect ratio16:9
Response time (typical)8 ms
Response time (typical)8 ms
Pixel pitch0.2451 x 2451 mm
Pixel pitch0.2451 x 2451 mm
Display colors1.07 G Billion
Display colors1.07 G Billion
Viewing angle (H / V)178 / 178 degree
Viewing angle (H / V)178 / 178 degree
Picture enhancement3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, 3D MA deinterlacing, Dynamic contrast enhancement, Progressive scan
Picture enhancement3/2 - 2/2 motion pull down
3D Combfilter
Motion compens. Deinterlacing
3D MA deinterlacing
Dynamic contrast enhancement
Progressive scan
Operating systemAndroid 8.0
Operating systemAndroid 8.0
Panel technologyIPS
Panel technologyIPS
Connectivity
Connectivity
Video inputDisplay Port1.2 (x1), DVI-I (x 1), HDMI 2.0 (x2), USB 2.0 (x2)
Video inputDisplay Port1.2 (x1)
DVI-I (x 1)
HDMI 2.0 (x2)
USB 2.0 (x2)
Video outputDisplayPort 1.2 (x1), HDMI 2.0 (x1)
Video outputDisplayPort 1.2 (x1)
HDMI 2.0 (x1)
Audio input3.5 mm jack
Audio input3.5 mm jack
Audio output3.5mm jack
Audio output3.5mm jack
External controlRJ45, RS232C (in/out) 2.5 mm jack, IR (in/out) 3.5 mm jack
External controlRJ45, RS232C (in/out) 2.5 mm jack, IR (in/out) 3.5 mm jack
WiFidual antenna 2,4Ghz and 5Ghz
WiFidual antenna 2,4Ghz and 5Ghz
Supported Display Resolution
Supported Display Resolution
Computer formats1024 x 768, 60Hz
1280 x 1024, 60Hz
1280 x 720, 60Hz
1440 x 900, 60 Hz
1600 x 900, 60Hz
1680 x 1050, 60Hz
1920 x 1080, 60Hz
3840 x 2160, 30, 60Hz
640 x 480, 60Hz
800 x 600, 60Hz
Computer formats1024 x 768, 60Hz
1280 x 1024, 60Hz
1280 x 720, 60Hz
1440 x 900, 60 Hz
1600 x 900, 60Hz
1680 x 1050, 60Hz
1920 x 1080, 60Hz
3840 x 2160, 30, 60Hz
640 x 480, 60Hz
800 x 600, 60Hz
Video formats1080p, 50, 60Hz
1080i, 50, 60Hz
2160p, 24, 30, 60Hz
480i, 60Hz
480p, 60Hz
576i, 50Hz
576p, 50Hz
720p, 50,60 Hz
Video formats1080p, 50, 60Hz
1080i, 50, 60Hz
2160p, 24, 30, 60Hz
480i, 60Hz
480p, 60Hz
576i, 50Hz
576p, 50Hz
720p, 50,60 Hz
Dimensions
Dimensions
Set dimensions (W x H x D)973.0 x 561.2 x 63.5 mm
Set dimensions (W x H x D)973.0 x 561.2 x 63.5 mm
Set dimensions in inch (W x H x D)38.31 x 22.09 x 2.50 inch
Set dimensions in inch (W x H x D)38.31 x 22.09 x 2.50 inch
Bezel width13.9 mm (Even bezel)
Bezel width13.9 mm (Even bezel)
Product weight (lb)23.61 lb
Product weight (lb)23.61 lb
Product weight10.71 kg
Product weight10.71 kg
VESA Mount200 (H) x 200(V) mm, M6
VESA Mount200 (H) x 200(V) mm, M6
Convenience
Convenience
PlacementLandscape (24/7), Portrait (24/7)
PlacementLandscape (24/7), Portrait (24/7)
Tiled MatrixUp to 15 x 15
Tiled MatrixUp to 15 x 15
Keyboard controlHidden, Lockable
Keyboard controlHidden, Lockable
Signal loop throughRS232, IR Loopthrough, DisplayPort, HDMI
Signal loop throughRS232, IR Loopthrough, DisplayPort, HDMI
Network controllableRS232
Network controllableRS232
Energy saving functionsSmart Power
Energy saving functionsSmart Power
Screen saving functionsPixel Shift, Low Bright
Screen saving functionsPixel Shift, Low Bright
WiFi protocola b g n, 802.1x
WiFi protocola b g n, 802.1x
Power
Power
Standby power consumption<0.5 W
Standby power consumption<0.5 W
Mains power100 ~ 240 VAC, 50 ~ 60 Hz
Mains power100 ~ 240 VAC, 50 ~ 60 Hz
Consumption (Typical)83 W
Consumption (Typical)83 W
Consumption (Max)123 W
Consumption (Max)123 W
Energy Label ClassG
Energy Label ClassG
Operating conditions
Operating conditions
Temperature range (operation)0 ~ 40 °C
Temperature range (operation)0 ~ 40 °C
Temperature range (storage)-20 ~ 60 °C
Temperature range (storage)-20 ~ 60 °C
Altitude0 ~ 3000 m
Altitude0 ~ 3000 m
MTBF50,000 hour(s)
MTBF50,000 hour(s)
Humidity range (operation)[RH]20 - 80% RH (No condensation)
Humidity range (operation)[RH]20 - 80% RH (No condensation)
Humidity range (storage) [RH]5 - 95% RH (No condensation)
Humidity range (storage) [RH]5 - 95% RH (No condensation)
Sound
Sound
Built-in speakers2 x 10W RMS
Built-in speakers2 x 10W RMS
Accessories
Accessories
Included accessoriesQuick start guide, RS232 cable, AC Power Cord, IR sensor cable (1.8M), Remote Control & AAA Batteries
Included accessoriesQuick start guide, RS232 cable, AC Power Cord, IR sensor cable (1.8M), Remote Control & AAA Batteries
Included AccessoriesRS232 daisy-chain cable, Philips logo (x1), AC Switch Cover, USB Cover (x1), Screws
Included AccessoriesRS232 daisy-chain cable, Philips logo (x1), AC Switch Cover, USB Cover (x1), Screws
StandBM05922 (Optional)
StandBM05922 (Optional)
Multimedia Applications
Multimedia Applications
USB Playback AudioAAC, HEAAC, MPEG
USB Playback AudioAAC, HEAAC, MPEG
USB Playback PictureBMP, JPEG, PNG
USB Playback PictureBMP, JPEG, PNG
USB Playback VideoMPEG, H.263, H.264, H.265, VP8
USB Playback VideoMPEG, H.263, H.264, H.265, VP8
Miscellaneous
Miscellaneous
On-Screen Display LanguagesEnglish, French, German, Spanish, Polish, Turkish, Russian, Italian, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish
On-Screen Display LanguagesEnglish, French, German, Spanish, Polish, Turkish, Russian, Italian, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish
Regulatory approvalsCE, CCC, RoHS, BSMI, CB, VCCI, CU, EMF, EnergyStar 8.0, ETL, FCC, Class A, PSB
Regulatory approvalsCE, CCC, RoHS, BSMI, CB, VCCI, CU, EMF, EnergyStar 8.0, ETL, FCC, Class A, PSB
Warranty3 year warranty
Warranty3 year warranty
Internal Player
Internal Player
CPU2 x A53 + 2 x A73
CPU2 x A53 + 2 x A73
GPUARM Mali G51
GPUARM Mali G51
Storage32 GB eMMc
Storage32 GB eMMc
Memory3GB DDR
Memory3GB DDR
