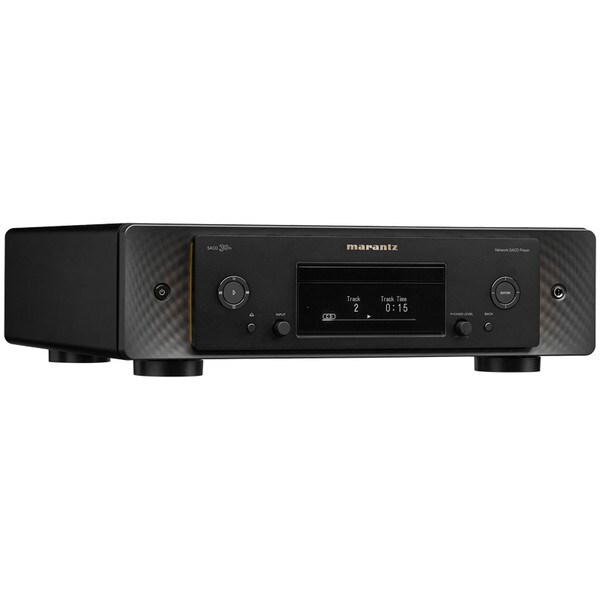

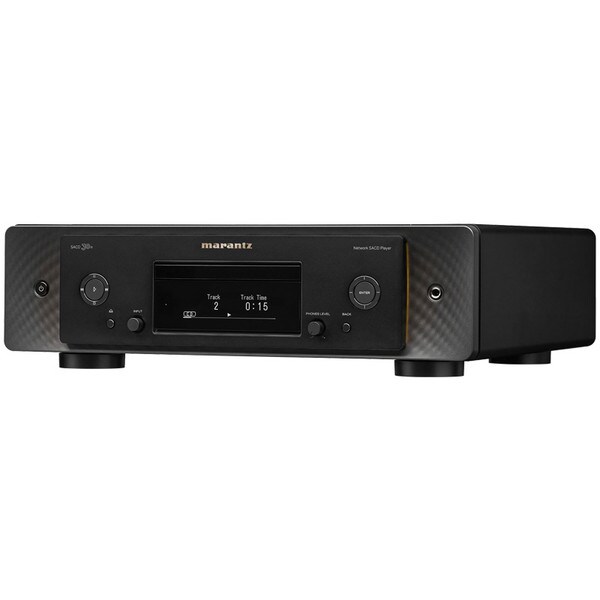

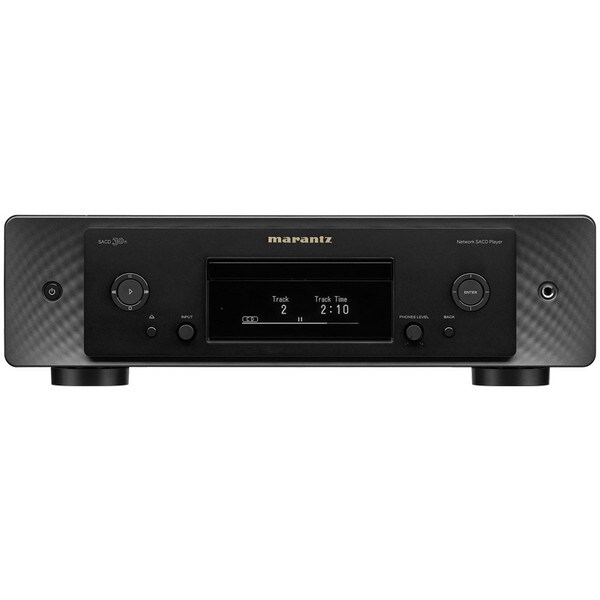

Marantz SACD 30n HEOS Super Audio CD Player - Black
Details
Extraordinary Musicality
Marantz SACD 30n is the ultimate digital source player for CD's, SACD's and high-resolution files, plus a plethera of music streaming services.
For Passionate Music Fans
SACD 30n was designed for the experienced, passionate music lovers who appreciate flexibility in format, while expecting the most realistic sonic performance.
Sound Master Tuned
Hundreds of hours of careful Sound Master tuning ensure the exquisite detail and musicality that Marantz has always delivered.
Crafted In Shirakawa, Japan
SACD 30n was manufactured by skilled technicians and artsians in our facilities in Shirikawa, Japan to deliver the highest build quality and performance.
Custom HDAM Modules
The most musical, accurate, detailed sound is possible due to the SACD 30n being built on its own discrete circuit board, the Hyper-Dynamic Amplifier Module, or HDAM.
Legacy System Connectivity
SACD 30n integrates the Marantz Musical Mastering digital-to-analogue converter, ensuring you can extract the finest of detail from your source, while maintaining Marantz's sonic signature.
Play Hi-Res Audio USB Sources
The SACD 30n can play back MP3, WMA, AAC and WAV, FLAC HD, ALAC, AIFF (up to 192kHz / 24bit), and DSD (up to 5.6MHz) files from a connected USB storage device.
HEOS Built-in Technology
With HEOS® Built-in, your unit can stream music wirelessly across compatible HEOS components from a variety of free and premium streaming services. Consumers can also enjoy their favorite music in any room of the home wirelessly. Play the same song in every room or select a different song for each connected room via a variety of streaming sources.
Roon Ready
Roon is a paid software solution that allows you to play music on all the Roon devices around your home: Loved by passionate music fans around the world, Roons' ability to present your favourite music is unparalleled. Roon Ready network devices have Roon's streaming technology built in, and are certified by Roon Labs to provide the highest level of quality and performance in network streaming.
Marantz Multi-Room
The ability to playback so many sources makes the SACD 30n the ideal partner for multi-room listening via the HEOS Built-in integration. Send CD audio around your home easily with the iOS / Android app.
CD And SACD Playback
The Marantz SACD 30n features a dedicated SACDM-3L transport mechanism designed for optimal SACD, CD and data disc playback.
Digital Pre-Amp Built In
In addition to the traditional analogue out, you can connect a power anp to the SACD 30n's variable RCA output and use HEOS or the remote control to adjust the SACD 30n volume output. Making it an incredibly versatile digital preamplifier.
USB-B Asynchronous DAC
High resolution playback is supported via the rear USB-B input, allowing for an asynchronous connection to playback files up to 384kHz/32bit PCM and DXD, DSD 2.8MHz, 5.6Mhz and even up to 11.2MHz.
Specifications
| Features | |
|---|---|
| Asynchronous Mode (Rear USB-B) | Yes |
| Bit-Perfect Transmission | Yes |
| CD Compatibility | CD, CD-R/RW, WMA, MP3, SA-CD |
| SA-CD Text, ID3 Tag, WMA Meta Tag | Yes, Yes, Yes |
| DAC Operation Modes: | USB B, Coaxial, Optical |
| Data Disc Compatibility | DSD, WAV, ALAC |
| Digital Out Off | Yes |
| Extra Metal Plate For Chassis Strengthening | Yes (1.5mm) |
| HDAM Version | HDAM + HDAM SA3 |
| Headphone : Current Feedback | HDAM SA2 |
| HESO Mutliroom And Streaming | Yes |
| Internet Radio | TuneIn, iHeartRadio |
| Jitter Reducer | Yes |
| Network Audio Streaming | Yes |
| Power Transformer | Toroidal |
| Roon Tested | Yes |
| Signal Isolator For DAC Mode Operation | Yes |
| Spotify Conenct / Tidal Connect / Qobuz Connect | Yes |
| Symmetric Circuit Layout | Yes |
| USB Input For Memory Stick | Yes |
| USB-B DSD Audio Streaming (DoP): DSD2.8 / 5.6 / 11.2 | Yes / Yes / Yes |
| Inputs Outputs | |
| Analogue Out (Cinch) | 1 |
| D-Bus | Yes |
| Digital Coaxin In / Out | 2 / 1 |
| Digital Optical In / Out | 1 / 1 |
| Ethernet Port | Yes |
| Flasher Input | Yes |
| Gold Plated Cinch | Yes |
| Headphone Out | Yes |
| Headphone Volume Control | Yes |
| IP Control | Yes |
| RS232 | Yes |
| Sample Rate Digital In | 192kHz / 24-bit |
| USB Audio A (Rear) | Yes |
| USB Type B Input For PC (Rear) | Yes - Up to DSD 11.2 |
| Variable Out (Cinch) | 1 |
| Network | |
| App Control (AMP/CD) via Network Player | Yes |
| Bluetooth On / Off Mode | Yes |
| DSD Audio Streaming | Up To DSD 5.6 |
| Gapless Playback | Yes (FLAC, WAV, DSD) |
| Lossless Formats : FLAC HD 192/24, ALAC 96/24, WAV 192/24) | Yes / Yes / Yes / Yes |
| Lossy Formats : MP3, WMA, AAC | Yes / Yes / Yes |
| Remote App: | iOS, Android |
| Wi-Fi On / Off Mode | Yes |
| Wi-Fi / Wired LAN | 2.4GHz, 5GHz / Yes |
| Others | |
| Display : Dimmer / Off | Yes / Yes |
| Marantz Musical Mastering | Yes |
| Marantz Musical Mastering Conversion | Yes |
| Marantz Musical Mastering Stream | Yes |
| Selectable Filters: CD, SA-CD, DAC-Mode | Yes, No, Yes (PCM Only) |
| Seperated Rectifier Circuit For Analogue & Digital Circuitry | Yes |
| Playback | |
| Programme Play (CD / SA-CD) | 25 / No |
| Random Play | Yes |
| Repeat | Yes |
| Specifications | |
| D/A Conversion | Marantz Musical Mastering |
| DAC IC | Marantz Musical Mastering |
| Digital Filter | Marantz Musical Mastering |
| Dynamic Range | 98dB |
| Dynamic Range (SA) | 109dB |
| Frequency Response | 2Hz - 20kHz |
| Headphone Amp | HDAM SA3 |
| Low Pass Filter Stage | HDAM |
| Mechanism | SACDMNo3L |
| Noise Shaper | Marantz Musical Mastering |
| Output Buffer | HDAM SA3 |
| Signal To Noise Ratio | 104dB |
| Signal To Noise Ratio (SA) | 112dB |
| Total Harmonic Distortion | 0.000015 |
| Total Harmonic Distortion (SA) | 0.000008 |
| General | |
| Auto Power Off | Yes |
| Detachable Power Cable | Yes |
| Metal Front Panel | Yes |
| Power Consumption | 48W |
| Standby Consumption | 0.4W |
| Metal Front Panel | Yes |
| Dimensions (W/H/D) | 443 x 130 x 424mm |
| Weight | 13.5kg |
