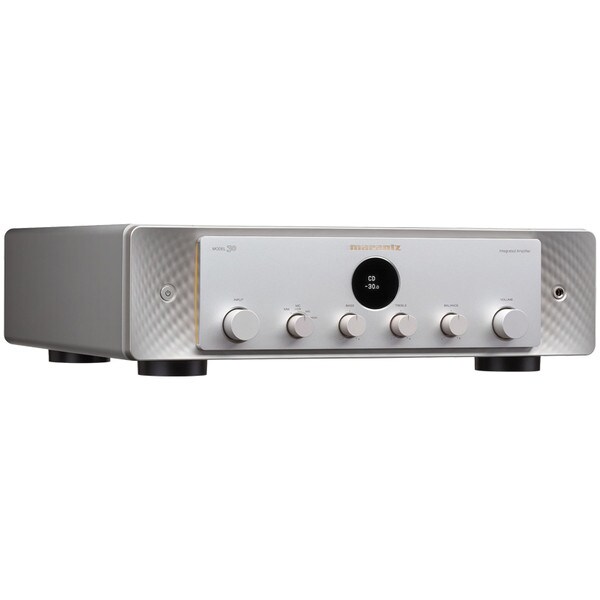

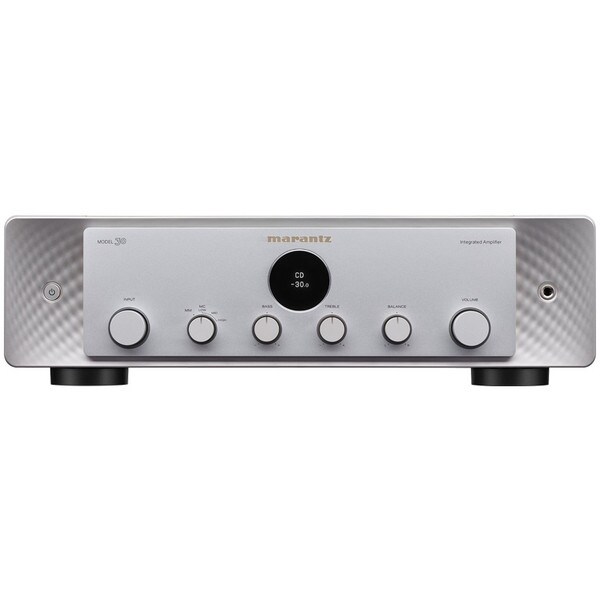

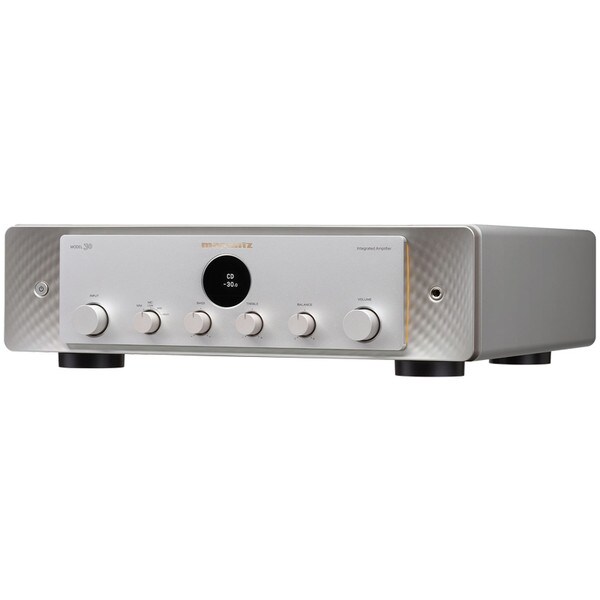

Marantz MODEL 30 2 Channel Integrated Amp - Silver Gold
Details
Designed To Last
Get the most musical sound possible from this Master Tuned integrated amplifier. Its custom-designed HDAM delivers exquisite detail and unforgettable musicality from any style of music. You see and feel it in the build quality and you hear it every time. No matter your musical passions, your system always sounds better with MODEL 30.
Tuned With Passion
Hundreds of hours of thoughtful Sound Master tuning ensure the exquisite detail and musicality Marantz always delivers.
Fully Discrete And Accurate Detailing
Marantz HDAM-SA3 technology is comprised of dozens of independent parts, each hand-selected for pure, detailed Marantz sound.
Extraordinary Sensitivity
Designed to replicate the sensitivity and feel of a vintage analogue amplifier, something that comes to the fore, even when simply adjusting the volume.
The Most Musical, Accurate, Detailed Sound
MODEL 30 is built on its own discrete circuit board, the Hyper Dynamic Amplifier Modules, or HDAM. By custom-curating hundreds of individual parts, rather than adopting an off-the-shelf solution, the MODEL 30 HDAM significantly outperforms standard integrated circuits to create the unique musicality you always expect from Marantz.
Marantz Musical Premium Phono EQ
Envisioned to deliver optimal sound quality by simplifying the signal path - vital given the delicate nature of phono signals - the Phono EQ stage in MODEL 30 can be used with both moving magnet and low-output moving coil cartridges, thanks to a built-in MC head amplifier.
MC / MM Phono Input Impedance Selector
In order to optimise sound performance when using a moving coil (MC) or magnetic moving (MM) cartridge, and to accommodate all configurations as much as possible, MODEL 30 is equipped with an input impedance selector. The input impedance can be adjusted to three different settings : MC LOW (33 ohm), MC MID (100 ohm) and MC HIGH (390 ohm).
Built For Generations
Founded in 1953, Marantz has a long and rich history of designing audio components embraced by music lovers and critical listeners around the world. Because music matters, the MODEL 30 continues Marantz's long tradition of delivering a best-in-class listening experience for music and cinema. Your music always sounds better on a Marantz.
100 Watts Of Power
Delivering 100 Watts of power at 8 ohms, means that the MODEL 30 can drive demanding loudspeakers with ease.
Crafted In Shirakawa, Japan
MODEL 30 was conceived and engineered in our facilities in Shirikawa, Japan to deliver the highest performance.
Specifications
| Features | |
|---|---|
| Channels | 2 |
| Phono EQ | Marantz Musical Premium (MM & MC) |
| MC Input Resistance | 33 / 100 / 390 ohm |
| HDAM Version | SA3 & SA2 |
| Power Transformer Pre-Amplifier | Toroidal |
| Power Transformer Power Amplifier | SMPS |
| Symetric PCB Layout | Yes |
| Aluminium Extrusion Heat Sink | Yes |
| Balance / Bass / Treble | Yes |
| Specifications | |
| Power Output (8 / 4 Ohm RMS) | 100W / 200W |
| Frequency Response | 5Hz - 50kHz |
| Total Harmonic Distortion | 0.00005 |
| Damping Factor | 500 |
| Input Sensitivity : MM | 2.3 mV / 39 kohm |
| Input Sensitivity : MC | 250 uV 33/100/390 kohm |
| Signal To Noise Ratio : MM / MC | 88 / 75dB |
| Input Sensitivity : High Level | 220 mV / 13 kohm |
| Signal To Noise Ratio : High Level | 107dB (2V input / rated output) |
| Others | |
| Linear Drive Power Supply | Yes - Pre-Amplifier Stage |
| Linear Volume Control | Yes |
| Schottky Diodes | Yes |
| Copper System Block Shielding | Yes |
| Double Layer Bottom Plate | Yes |
| Low Noise OLED Display | Yes |

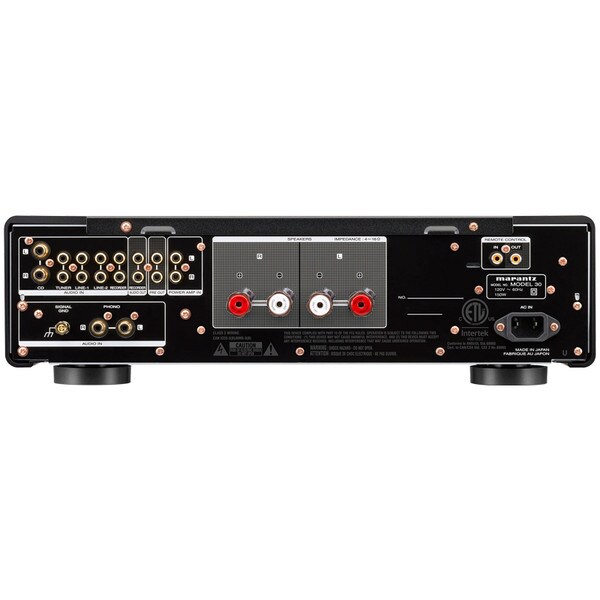

| Inputs / Outputs | |
| Audio Inputs | 6 |
| Phono Input : MM / MC | Yes / Yes |
| Audio Outputs | 1 |
| Pre-Out | 1 |
| Power Amp Direct IN | 1 |
| Gold Plated Cinch | Yes |
| Number Of Terminals | 2 |
| D-Bus | Yes |
| Headphone Out (Front) | Yes |
| General | |
| Power Consumption | 130W |
| Standby Consumption | 0.2W |
| Auto Power Off | Yes |
| Detachable Power Cable | Yes |

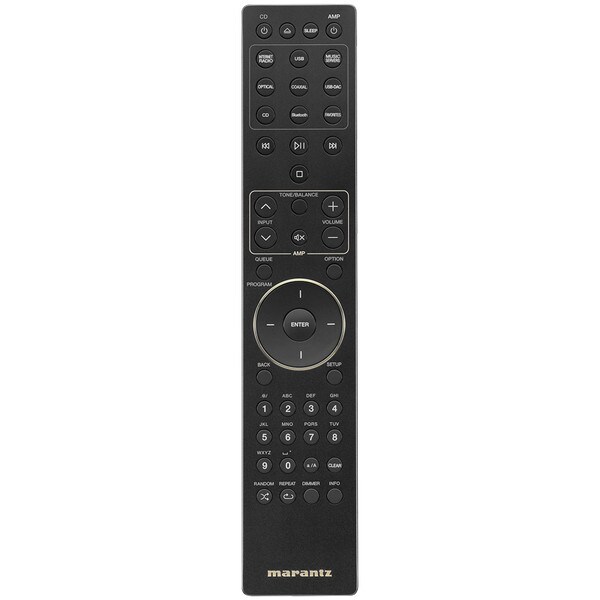

| Remote Control | RC002PMND |
| System Remote Function | Yes |
| Dimensions (W/H/D) | 443 x 130 x 431mm |
| Weight | 14.6kg |
